Configure Redis on TurboStack

Redis is enabled by default on TurboStack with two instances for cache and persistent data - where it lives in the GUI and the YAML keys.

Redis is enabled by default; you can confirm it and, if needed, adjust its memory per host.

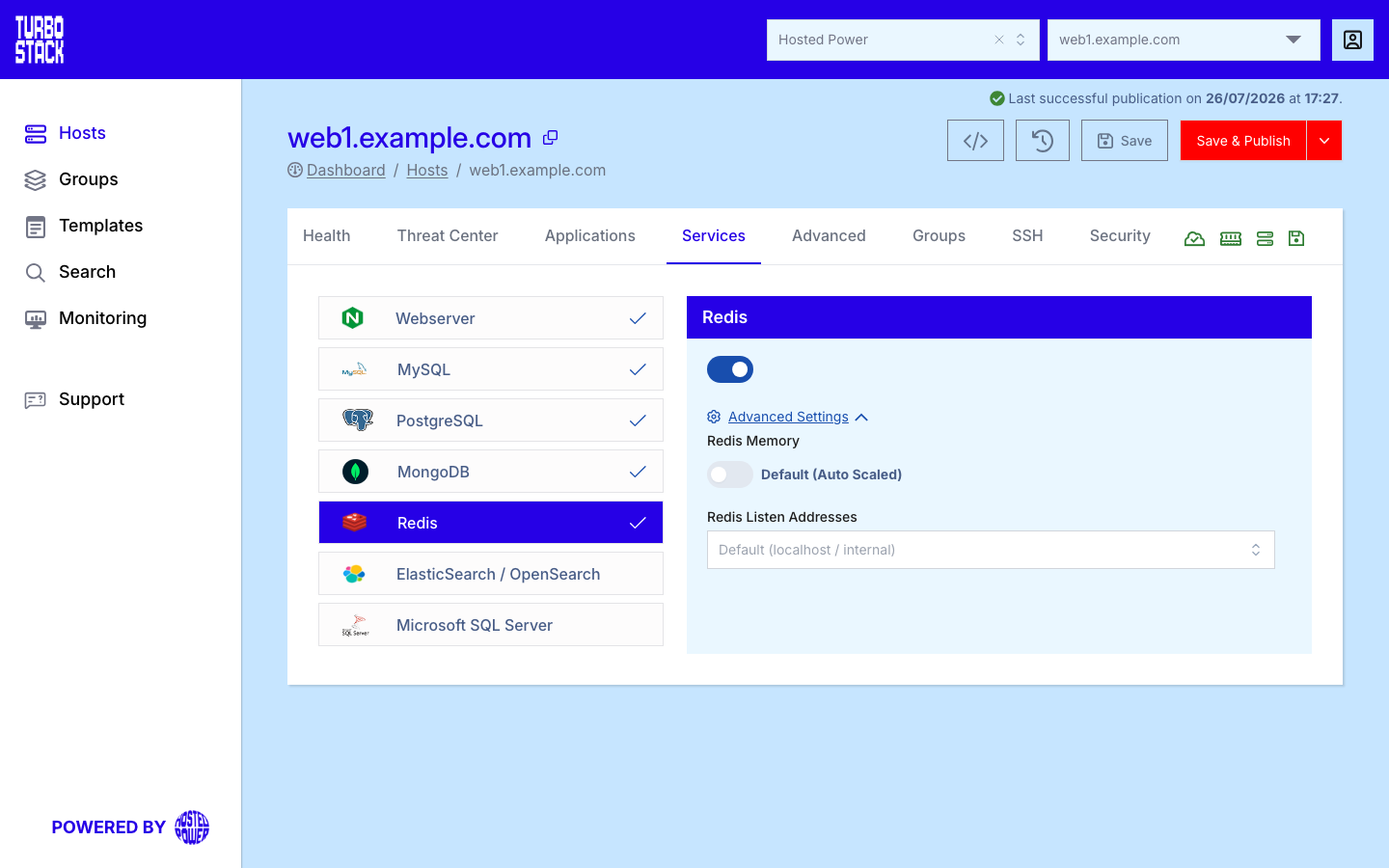

The Redis panel on a host's Services tab, enabled, with Advanced Settings expanded to show Redis Memory and Redis Listen Addresses

Where to configure it

Redis is a host-level service. Open the host, go to its Services tab, and find the Redis entry. From there you can confirm it is enabled and adjust its settings. Changes are written to the host's YAML and applied on the next deployment.

By convention TurboStack runs two instances on the host: port 6379 for transient cache data and port 6378 for persistent data such as sessions and queues.

Tip

Memory is auto-sized to the host. Only set a value when you have a measured reason to override it.

YAML configuration

Required

Key	Meaning
`redis_enabled`	Whether Redis runs on the host. Enabled (`true`) by default.

Optional

Key	Meaning
`redis_memory`	Maximum memory for the cache instance (port `6379`). Auto-sized by default; set only to override.
`redis_persistent_memory`	Maximum memory for the persistent instance (port `6378`), the one that keeps its data on disk. Auto-sized by default.
`redis_listen_addresses`	Which addresses Redis accepts connections on. Local only unless you set it.

redis_enabled: true
# Optional - overrides the automatic memory sizing:
redis_memory: "512mb"
# Optional - reachable from the private network instead of localhost only:
# redis_listen_addresses: internal

Listening address

Leave redis_listen_addresses unset and Redis stays on localhost. Set it to internal when another server on the private network must reach the cache: that binds the loopback addresses plus the host's private IPv4 addresses. internal is the only accepted value - anything else, including any, stops the deployment with an error.

Warning

Setting internal also turns off the Redis protected mode. Redis has no password by default, so anything that can reach the port can read and delete your data. Only use it on a trusted private network, never with a public address.

Important

On a host that runs Kubernetes or Docker, Redis uses internal unless you set redis_listen_addresses yourself, and protected mode is off on such a host either way.

Note

The two-instance split (6379 cache, 6378 persistent) is a TurboStack convention. Make sure your application connects transient cache traffic to 6379 and durable data to 6378. For the local socket paths and how to give each application its own database, see Use Redis for sessions and cache.
